Dali Power Supply – Digitech Lights

Add to Enquiry
DG-12V-100W DALI
DG-12V-100W DALI Power Supply ₹100.00
Item No. DG-12V-100W DALI

Input Voltage 12V

Watt 100W

IP Rating: IP20

Size 230 x 29 x 49mm

Conversion Efficiency 93% – 100% full power

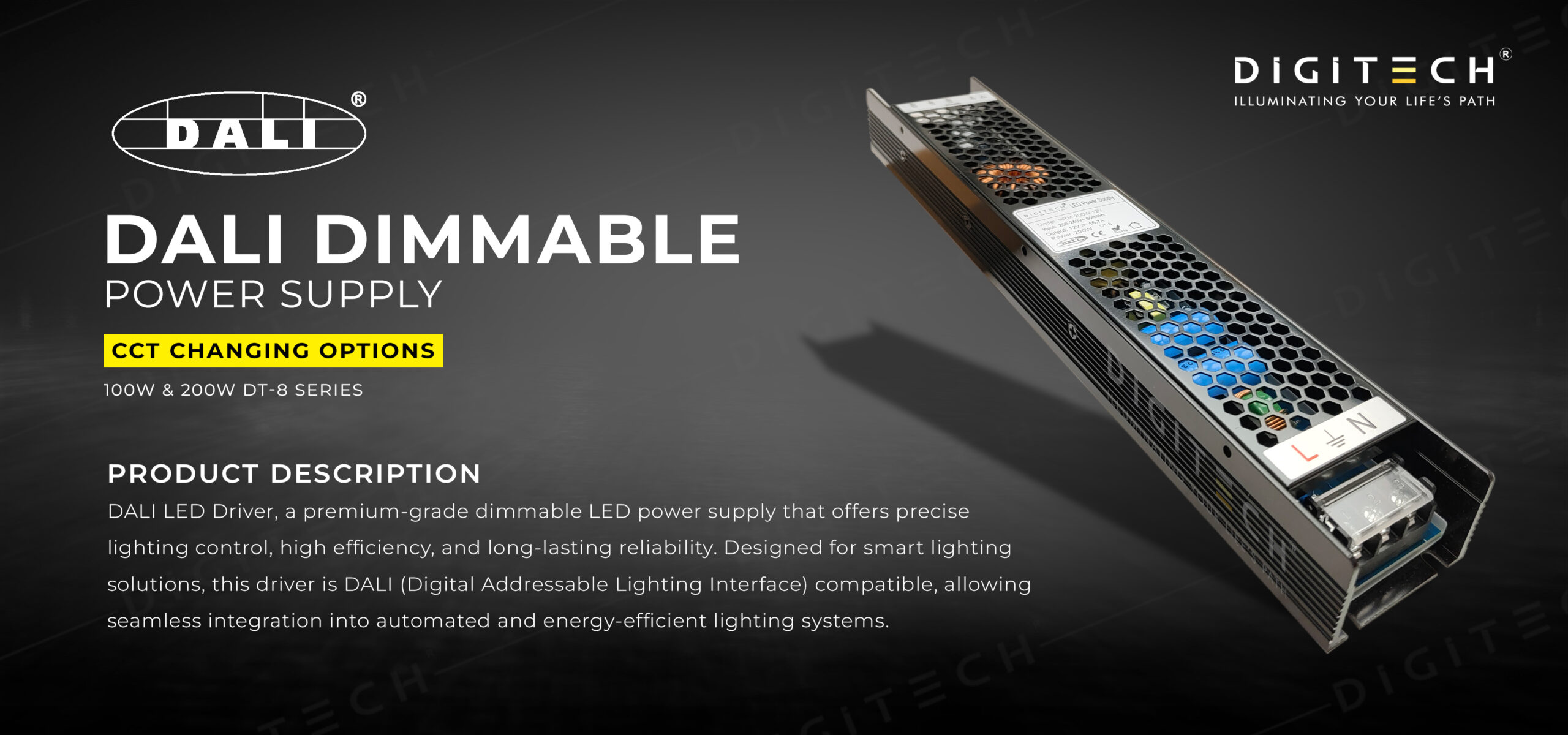

A DALI (Digital Addressable Lighting Interface) dimmable LED power supply, or driver, is a device that powers LED fixtures and allows them to be digitally controlled for functions like brightness adjustment and color tuning. The DALI protocol enables precise, flicker-free, and individual or group control of lighting fixtures, making it a popular choice for professional and large-scale smart lighting systems.

Key types of DALI dimmable LED drivers

Constant voltage (CV) drivers

Constant voltage drivers are used for LEDs that require a consistent voltage to operate, such as most LED strip lights.
- How they work: The driver provides a steady voltage (e.g., 12V, 24V) to the LEDs, and the load (the combined LED wattage) must not exceed the driver’s maximum output power.
- Dimming: For smooth, even dimming across the entire range, a constant voltage driver with a Pulse Width Modulation (PWM) output is highly recommended.
Constant current (CC) drivers

Constant current drivers are designed for LEDs that require a fixed, stable current, such as many spotlights and downlights.
- How they work: The driver regulates the current flowing to the LEDs to protect them from overheating and ensure a consistent brightness.
- Dimming: The dimming is controlled by adjusting the constant current output. Some drivers may have a selectable current output using a DIP switch.
DALI Device Type 8 (DT8) drivers

DT8 drivers are a specialized type that allows for integrated color control, making them ideal for dynamic white (CCT) and RGBW applications.
- How they work: Instead of requiring multiple DALI addresses for each color channel, a single DT8 driver uses only one DALI address to control both the color and brightness of a fixture.
- Efficiency: Using DT8 simplifies installation and reduces wiring, while still allowing for a wide range of color and brightness adjustments.
100 in stock
Add to Enquiry
DG-12V-200W DALI
DG-12V-200W DALI Power Supply ₹100.00
Item No. DG-12V-200W DALI

Input Voltage 12V

Watt 200W

IP Rating: IP20

Size 289 x 29 x 49mm

Conversion Efficiency 93% – 100% full power

A DALI (Digital Addressable Lighting Interface) dimmable LED power supply, or driver, is a device that powers LED fixtures and allows them to be digitally controlled for functions like brightness adjustment and color tuning. The DALI protocol enables precise, flicker-free, and individual or group control of lighting fixtures, making it a popular choice for professional and large-scale smart lighting systems.

Key types of DALI dimmable LED drivers

Constant voltage (CV) drivers

Constant voltage drivers are used for LEDs that require a consistent voltage to operate, such as most LED strip lights.
- How they work: The driver provides a steady voltage (e.g., 12V, 24V) to the LEDs, and the load (the combined LED wattage) must not exceed the driver’s maximum output power.
- Dimming: For smooth, even dimming across the entire range, a constant voltage driver with a Pulse Width Modulation (PWM) output is highly recommended.
Constant current (CC) drivers

Constant current drivers are designed for LEDs that require a fixed, stable current, such as many spotlights and downlights.
- How they work: The driver regulates the current flowing to the LEDs to protect them from overheating and ensure a consistent brightness.
- Dimming: The dimming is controlled by adjusting the constant current output. Some drivers may have a selectable current output using a DIP switch.
DALI Device Type 8 (DT8) drivers

DT8 drivers are a specialized type that allows for integrated color control, making them ideal for dynamic white (CCT) and RGBW applications.
- How they work: Instead of requiring multiple DALI addresses for each color channel, a single DT8 driver uses only one DALI address to control both the color and brightness of a fixture.
- Efficiency: Using DT8 simplifies installation and reduces wiring, while still allowing for a wide range of color and brightness adjustments.
100 in stock
Add to Enquiry
DG-24V-100W DALI
DG-24V-100W DALI Power Supply ₹100.00
Item No. DG-24V-100W DALI

Input Voltage 24V

Watt 100W

IP Rating: IP20

Size 230 x 29 x 49mm

Conversion Efficiency 93% – 100% full power

A DALI (Digital Addressable Lighting Interface) dimmable LED power supply, or driver, is a device that powers LED fixtures and allows them to be digitally controlled for functions like brightness adjustment and color tuning. The DALI protocol enables precise, flicker-free, and individual or group control of lighting fixtures, making it a popular choice for professional and large-scale smart lighting systems.

Key types of DALI dimmable LED drivers

Constant voltage (CV) drivers

Constant voltage drivers are used for LEDs that require a consistent voltage to operate, such as most LED strip lights.
- How they work: The driver provides a steady voltage (e.g., 12V, 24V) to the LEDs, and the load (the combined LED wattage) must not exceed the driver’s maximum output power.
- Dimming: For smooth, even dimming across the entire range, a constant voltage driver with a Pulse Width Modulation (PWM) output is highly recommended.
Constant current (CC) drivers

Constant current drivers are designed for LEDs that require a fixed, stable current, such as many spotlights and downlights.
- How they work: The driver regulates the current flowing to the LEDs to protect them from overheating and ensure a consistent brightness.
- Dimming: The dimming is controlled by adjusting the constant current output. Some drivers may have a selectable current output using a DIP switch.
DALI Device Type 8 (DT8) drivers

DT8 drivers are a specialized type that allows for integrated color control, making them ideal for dynamic white (CCT) and RGBW applications.
- How they work: Instead of requiring multiple DALI addresses for each color channel, a single DT8 driver uses only one DALI address to control both the color and brightness of a fixture.
- Efficiency: Using DT8 simplifies installation and reduces wiring, while still allowing for a wide range of color and brightness adjustments.
100 in stock
Add to Enquiry
DG-24V-200W DALI
DG-24V-200W DALI Power Supply ₹100.00
Item No. DG-24V-200W DALI

Input Voltage 24V

Watt 200W

IP Rating: IP20

Size 289 x 29 x 49mm

Conversion Efficiency 93% – 100% full power

A DALI (Digital Addressable Lighting Interface) dimmable LED power supply, or driver, is a device that powers LED fixtures and allows them to be digitally controlled for functions like brightness adjustment and color tuning. The DALI protocol enables precise, flicker-free, and individual or group control of lighting fixtures, making it a popular choice for professional and large-scale smart lighting systems.

Key types of DALI dimmable LED drivers

Constant voltage (CV) drivers

Constant voltage drivers are used for LEDs that require a consistent voltage to operate, such as most LED strip lights.
- How they work: The driver provides a steady voltage (e.g., 12V, 24V) to the LEDs, and the load (the combined LED wattage) must not exceed the driver’s maximum output power.
- Dimming: For smooth, even dimming across the entire range, a constant voltage driver with a Pulse Width Modulation (PWM) output is highly recommended.
Constant current (CC) drivers

Constant current drivers are designed for LEDs that require a fixed, stable current, such as many spotlights and downlights.
- How they work: The driver regulates the current flowing to the LEDs to protect them from overheating and ensure a consistent brightness.
- Dimming: The dimming is controlled by adjusting the constant current output. Some drivers may have a selectable current output using a DIP switch.
DALI Device Type 8 (DT8) drivers

DT8 drivers are a specialized type that allows for integrated color control, making them ideal for dynamic white (CCT) and RGBW applications.
- How they work: Instead of requiring multiple DALI addresses for each color channel, a single DT8 driver uses only one DALI address to control both the color and brightness of a fixture.
- Efficiency: Using DT8 simplifies installation and reduces wiring, while still allowing for a wide range of color and brightness adjustments.
100 in stock
